The 1993 Lada Niva - восстановление (Recovery)



The first order of business in recovering the Lada was to arrange a tow-dolly from U-Haul. This proved to be a bit of a challenge, because using their online booking system had no listing for a Lada, of any sort. Being an American based business this comes as no real surprise, so I tried the telephone booking, keeping a backup plan in mind.

That too was an interesting exchange:
I placed my reservation with U-haul's US based booking center and was kindly asked, "Now sir, what exactly is a Lada Miva?" After some explanation, we settled on booking it in as a 1993 Suzuki Sidekick... LOL. I think he was mildly suspicious once I said built by Russians before the wall fell...
After that we were all set for our pickup, bright and early on Saturday morning.

November 10th arrived, clear, sunny and cold, but the roads were an absolute mess, densely packed ice had rendered the streets a skating rink, indeed a fine time to pull a trailer! Most importantly, it would make a fine adventure!

The pickup at the 50th Street, Edmonton U-Haul spot went without issue, and we were soon underway in the 2003 SVT Lightning to recover our prized “1993 Suzuki  Sidekick” ahem, Lada Niva Cossack. We made our way to Leduc without issue, making out much better than the plethora of ditched vehicles passed on the trip.

The Lada was nestled between an 8 foot high fence and a garage that faced out to the single lane alleyway. Shawn and I figured the best bet would be to try and gently drive the Niva out of that spot and onto the tow dolly, assuming we could make it run of course. We set to work quickly, slaving the dead Lada battery to the Lightning’s potent charging system while cranking up the 1.6L Fiat designed engine. After a few attempts with no real success we decided to stop messing around and made a quick trip to the nearby Canadian Tire for some parts and a fresh battery.

Better prepared, we returned with a battery, new fuel filters, a can of ether, and 10 Liters of gasoline. The engine really wanted to run with the new parts and a squirt or two of ether, but we weren’t getting fuel flow up to the carburetor. Since we were on a deadline to return the dolly, I simply backed the dolly in front of the Lada, Shawn popped it into Low Range and used the absence of a neutral safety switch to “drive” on to the dolly using the starter and new battery.

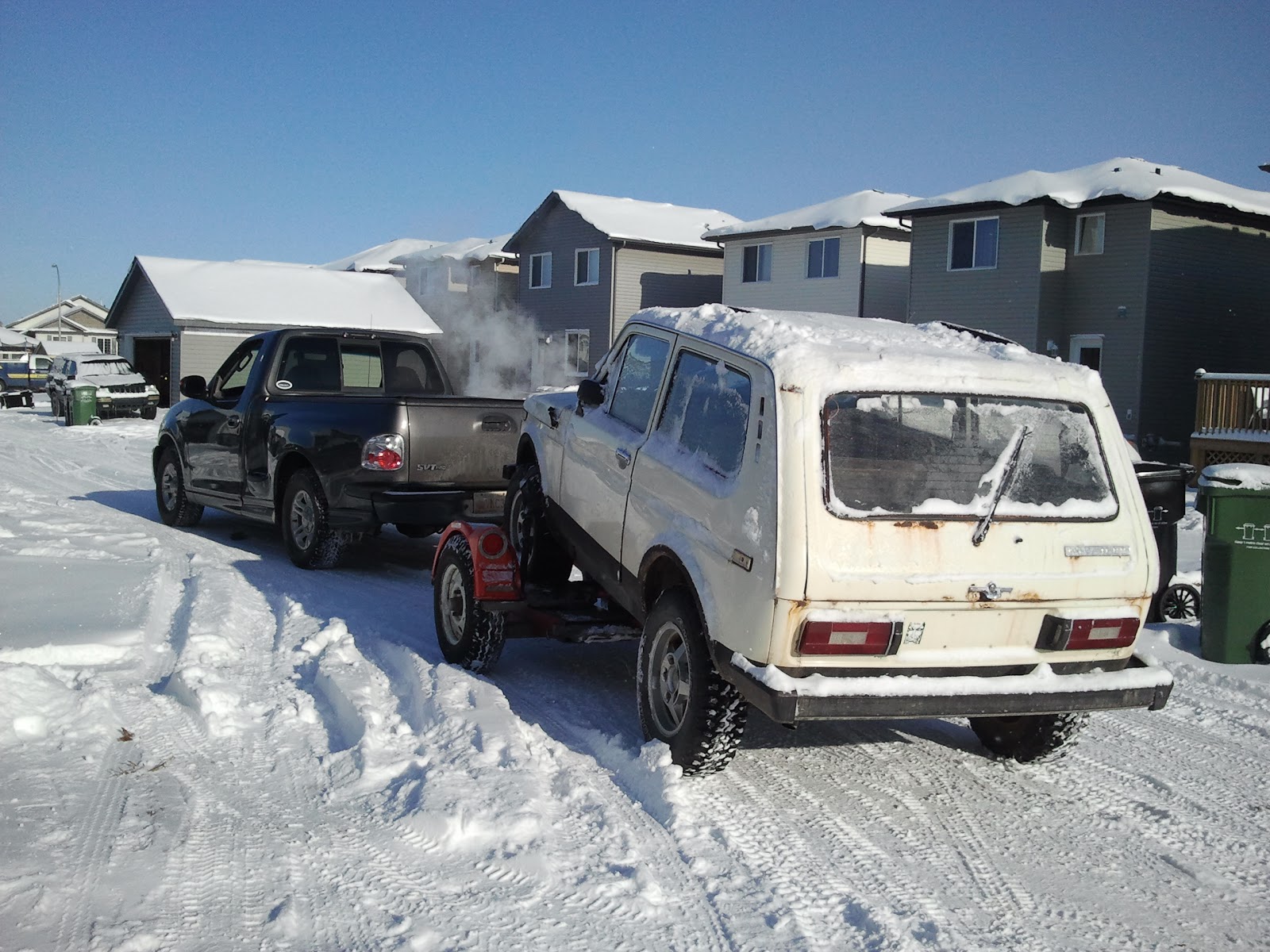

The little Niva was strapped down and ready in minutes, and with the Center Differential in Neutral we were able to tow without having the front wheels spin. A quick tug test and inspection at the nearby CO-OP gas bar and we were underway back north.



While travelling up Highway 2 a fellow in a Toyota 4x4 made a special point of lingering next to us as we rolled along, and then pulled ahead to wave and give us a hearty “thumbs-up”. It seems we weren’t the only Lada enthusiasts on the road that day.

Despite the awful roads and delays due to wrecks, we safely delivered the Lada to Grand Touring Concepts and returned the dolly to U-Haul without incident. Next up it was time to assess what we had, and what needed to be repaired.

The Lada Niva Toolkit (in English!)



Since our Lada Niva came minus the factory toolkit, and Lada can suffer from “intermittent running issues” we have been keen to either track down a replacement or build one from selections at Princess Auto (Harbor Freight to USA, Clarke to UK etc). After searching for a tool listing around the various internet resources I found lots of pictures of the toolkit but none of them had an actual list. However, after searching for one specific part number (12mm Allen wrench) I came across a manual that had the parts list… in Hungarian. Harnessing the power of Google Translate and a bit of logic I have been able to draft the following reference list.



12 – Ignition Adjustment Key
39 – Pressure Gauge, (Tires and Fuel)
41 – Fuel Hose
13 – Work Light 12V
43 – Bulb 21W (Work Light)

36 – Starter Handle
17 – Wrench, Open Ended 8mm & 10mm
22 – Wrench, Open Ended 13mm & 17mm
24 – Allen Key 12mm
25 – Wheel Wrench 19mm

28 – Socket, 8mm & 10mm
26 – Socket, 13/16 (Sparkplug)
27 – Punch, 8mm diameter X 150mm long (Socket Handle)
31 – Tire Lever/Iron
29 – Combined Screwdriver (Flat & Phillips)

32 – Tool Bag
30 – Pliers, Slip-Joint
23 – Wrench, Open Ended 22mm & 24mm
16 – Wrench, Open Ended 17mm & 19mm
19 – Wrench, Offset Box Ended 17mm & 19mm

18 – Wrench, Offset Box Ended 12mm & 13mm
37 – Jack, with Handle
42 – Hand Tire Pump
38 – Strap, Rubber (For Securing Jack)
10 – Strap, Rubber (For Securing Tool Kit)
11 – Strap, Rubber (For Securing Spare Tire)
